ULTRA NT SCIF Barrier – SOLID | 106.8 dB | 500 sq ft Roll
Buy More, Save More
Free UPS Ground Shipping Included — Contiguous U.S.
Save up to $50 per roll. Combine SOLID and PERFORATED individual-roll purchases in one order. Your qualifying price applies to every roll.
| Total rolls | Per roll | Save / roll |
|---|---|---|
| 1–10 | $215.00 | — |
| 11–20 | $205.00 | $10.00 |
| 21–30 | $195.00 | $20.00 |
| 31–40 | $185.00 | $30.00 |
| 41–50 | $175.00 | $40.00 |
| 51+ | $165.00 | $50.00 |
Need 64+ Rolls? Request a Project Quote
No discount code needed. Enter your roll quantity above. Your quantity discount appears automatically in the cart and checkout.
Savings compared with the $215 single-roll price. Free UPS Ground shipping is included within the contiguous U.S. Applicable taxes and expedited shipping are additional. Pallet listings also include free standard freight within the contiguous U.S.; request a quote for pallets or combined pallet-and-roll orders.
Order by roll. Quantity is the number of rolls.
In stock. Stock orders ship the next business day after order release. Free UPS Ground shipping is included within the contiguous U.S.
Get Project PricingQuestions? Call Michael: (573) 825-5074

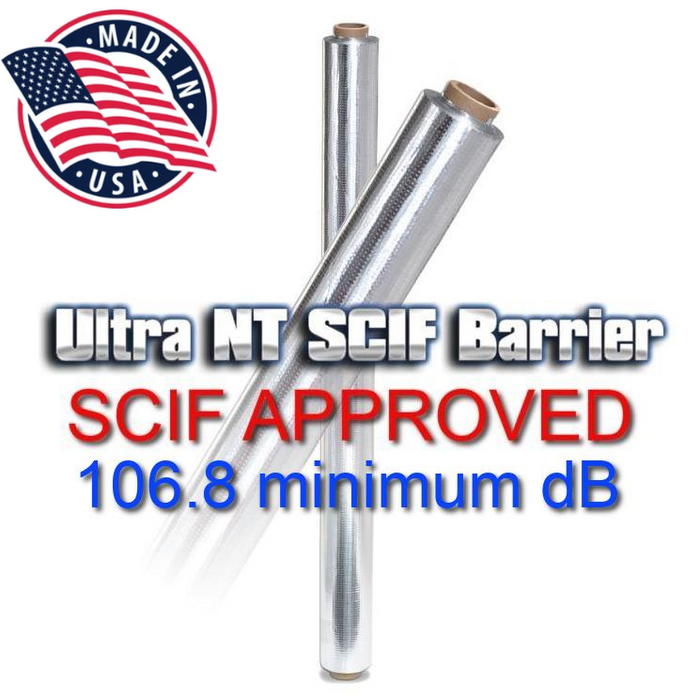

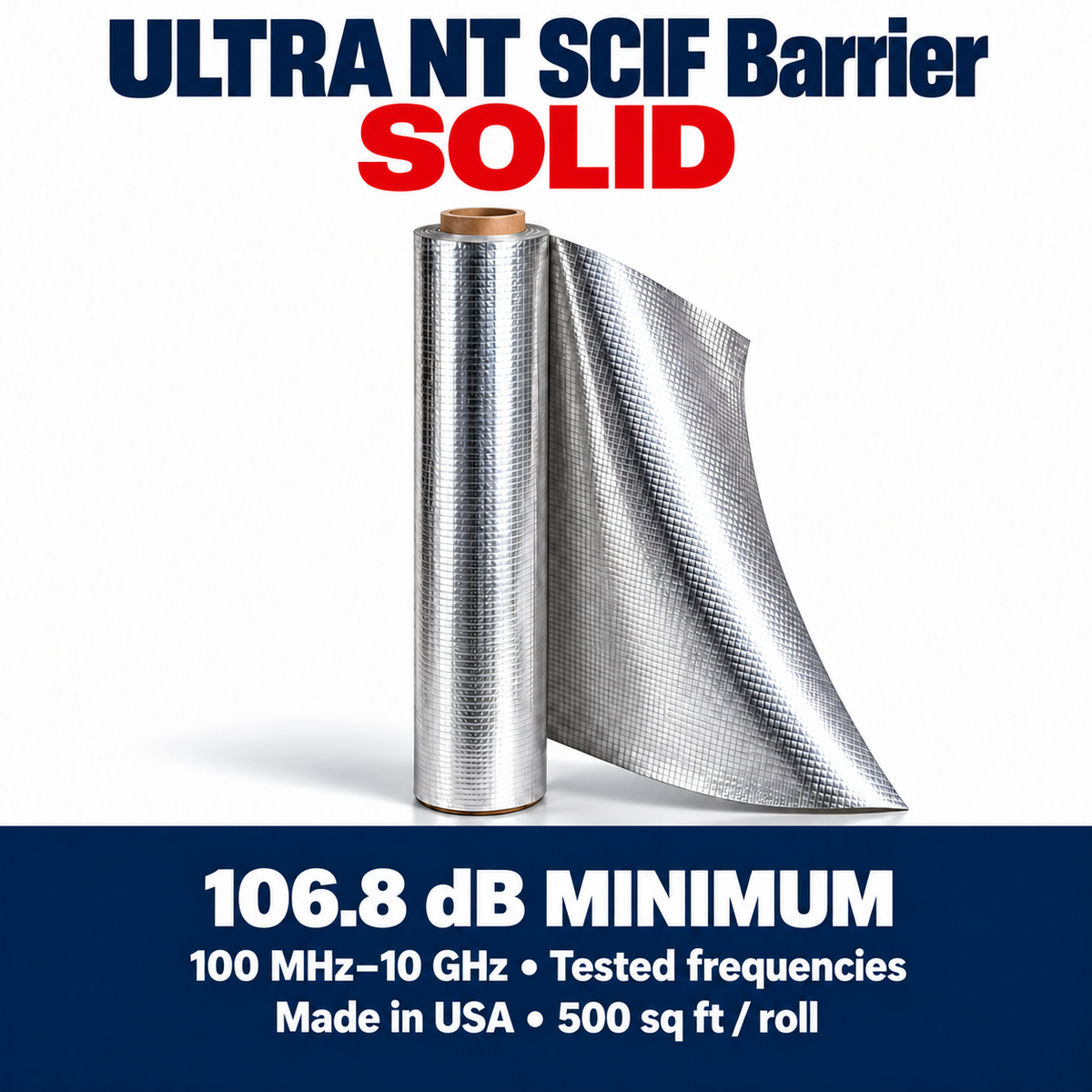

ULTRA NT SCIF Barrier – SOLID is a flexible aluminum foil / scrim / aluminum foil membrane for RF shielding in SCIFs and other secure enclosures. Install it within the project-designed wall, ceiling, and floor assemblies to help maintain a continuous shielding envelope.
- 106.8 dB minimum measured shielding effectiveness at tested frequencies from 100 MHz to 10 GHz
- Made in the USA • Buy American certification included in the documentation package
- ASTM E84 Class A surface burning characteristics
- 48 in × 125 ft roll • 500 sq ft nominal area
Need contractor or volume pricing? Send your material quantities and project information for a written quote.
New & Improved Technical Data Sheet and Installation Package
Get product specifications, step-by-step installation instructions, illustrated construction details, RF shielding test results, and Buy American certification—all in one convenient PDF to support project planning and product submittals.
80-page package: technical data, signed Buy American certification, three-part specification guide, illustrated installation details, and the complete supplied MET Laboratories report.
Download the Technical Data Sheet & Installation Package (PDF)Documented RF Shielding Performance
| Primary test range |
106.8 dB minimum 100 MHz–10 GHz |
|---|---|
| Extended test range |
91.7 dB minimum 30 MHz–18 GHz |
Lowest reported shielding effectiveness at tested frequencies in MET Laboratories report EMC96978-IEEE Rev. 3, dated August 14, 2018. Testing used IEEE-299:2006 techniques as a guideline. See the downloadable package for measured results and the full report.
Product Specifications
| Roll dimensions | 48 in wide × 125 ft long |
|---|---|
| Nominal area | 500 sq ft per roll |
| Construction | Aluminum foil / scrim / aluminum foil composite |
| Approximate roll weight | 16.75 lb |
| Temperature range | −60°F to 190°F |
| Surface burning | ASTM E84 Class A Flame spread: 0 • Smoke developed: 5 |
| Manufacturing | Texas, United States |
Installed coverage is less than nominal roll area because of overlaps, returns, cuts, and waste. Physical properties are manufacturer-declared values reproduced in the technical package.

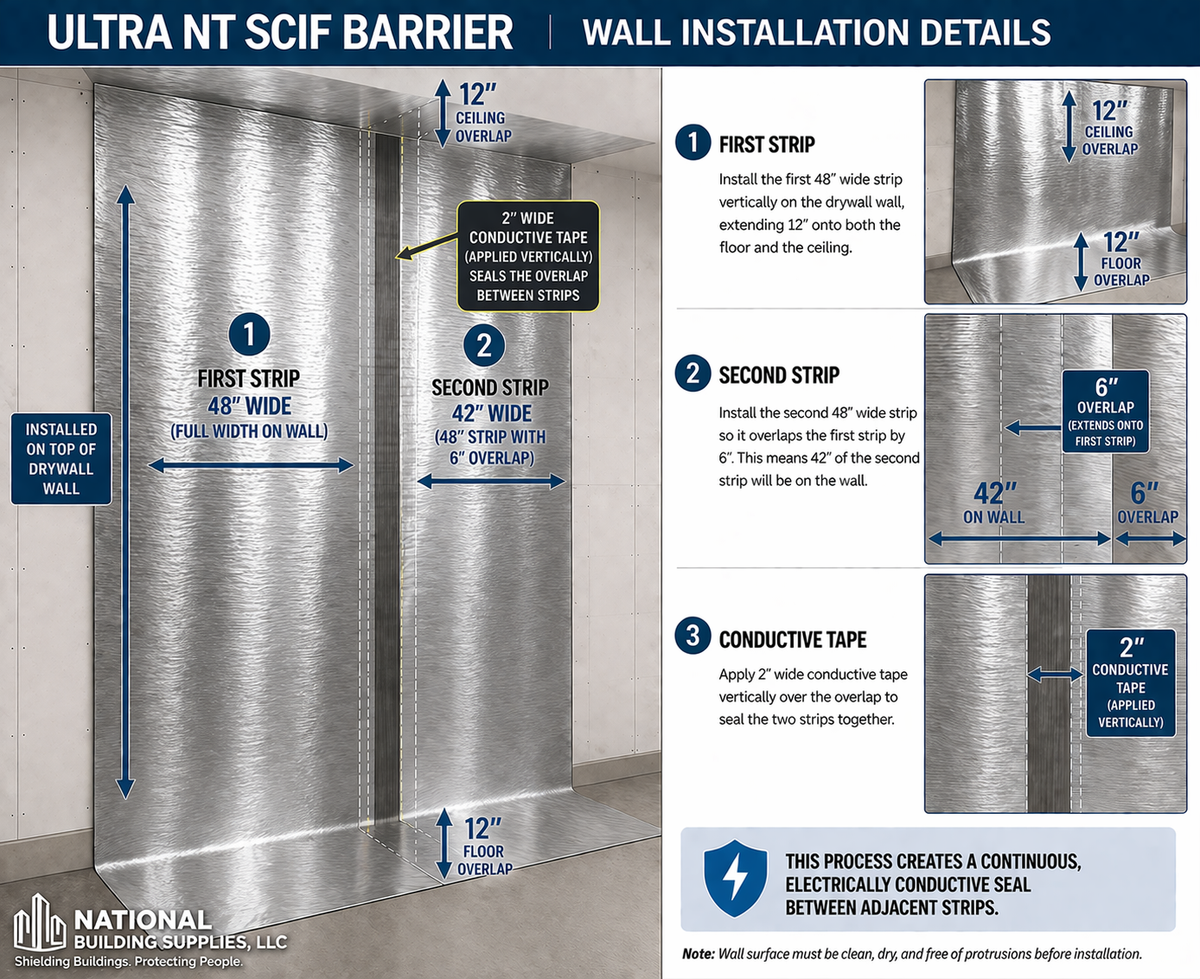

Installation Overview
Follow the approved project details and the complete installation instructions in the PDF package.
- Prepare the backing. Use a clean, dry, smooth surface compatible with the adhesive and assembly.
- Overlap and connect. Overlap adjoining sheets at least 6 inches. Extend wall membrane 12 inches onto the floor and ceiling as detailed in the guide.
- Seal the seams. Center the specified conductive-adhesive tape over exposed lap edges and press firmly across the full tape width.
- Complete the enclosure. Coordinate corners, penetrations, shielded components, bonding, grounding, and inspection before concealment.
Accessory selection: The guide lists 3M 3302 or 3M 1170 conductive seam tape and 3M Super 77 attachment adhesive, subject to project approval and substrate compatibility.
Measured results apply to tested samples. Completed-enclosure performance depends on the full design, installation, interfaces, and project acceptance testing.
Availability & Shipping
In stock. Stock orders ship the next business day after order release. Tracking is provided after carrier pickup.
Frequently Asked Questions
How many rolls will my project need?
Each roll has 500 sq ft of nominal area. Allow for overlaps, floor and ceiling returns, cuts, and waste. Send your required quantities for a material quote.
What does the documentation package include?
Technical data, measured RF performance, signed Buy American certification, a three-part specification guide, illustrated installation instructions including the Z-fold detail, and the complete supplied MET Laboratories report.
Is this product suitable for SCIF construction?
ULTRA NT SOLID is intended for project-designed SCIF and other shielded enclosures. The project design team determines material acceptance, assembly details, and completed-enclosure testing requirements.
Can I get volume or project pricing?
Yes. Use the volume pricing button to send your material quantities and project information, or call or text Michael Thrift at (573) 825-5074.
Plan Your RF Shielding Installation
Review the ULTRA NT SCIF Barrier installation instructions and technical data sheets and submittals. Compare ULTRA NT PERFORATED shielding membrane with your project requirements.
See 3M 3302 conductive seam tape, 3M 1170 foil shielding tape and EMCaulk FLEX conductive caulk for project-approved interfaces.
