ULTRA NT SCIF Barrier – PERFORATED | 65.55 dB | 500 sq ft Roll
Buy More, Save More
Free UPS Ground Shipping Included — Contiguous U.S.
Save up to $50 per roll. Combine SOLID and PERFORATED individual-roll purchases in one order. Your qualifying price applies to every roll.
| Total rolls | Per roll | Save / roll |
|---|---|---|
| 1–10 | $215.00 | — |
| 11–20 | $205.00 | $10.00 |
| 21–30 | $195.00 | $20.00 |
| 31–40 | $185.00 | $30.00 |
| 41–50 | $175.00 | $40.00 |
| 51+ | $165.00 | $50.00 |
Need 64+ Rolls? Request a Project Quote
No discount code needed. Enter your roll quantity above. Your quantity discount appears automatically in the cart and checkout.
Savings compared with the $215 single-roll price. Free UPS Ground shipping is included within the contiguous U.S. Applicable taxes and expedited shipping are additional. Pallet listings also include free standard freight within the contiguous U.S.; request a quote for pallets or combined pallet-and-roll orders.
Order by roll. Quantity is the number of rolls.
In stock. Stock orders ship the next business day after order release. Free UPS Ground shipping is included within the contiguous U.S.
Get Project PricingQuestions? Call Michael: (573) 825-5074

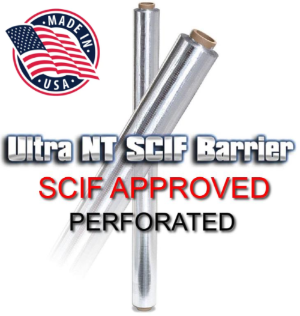

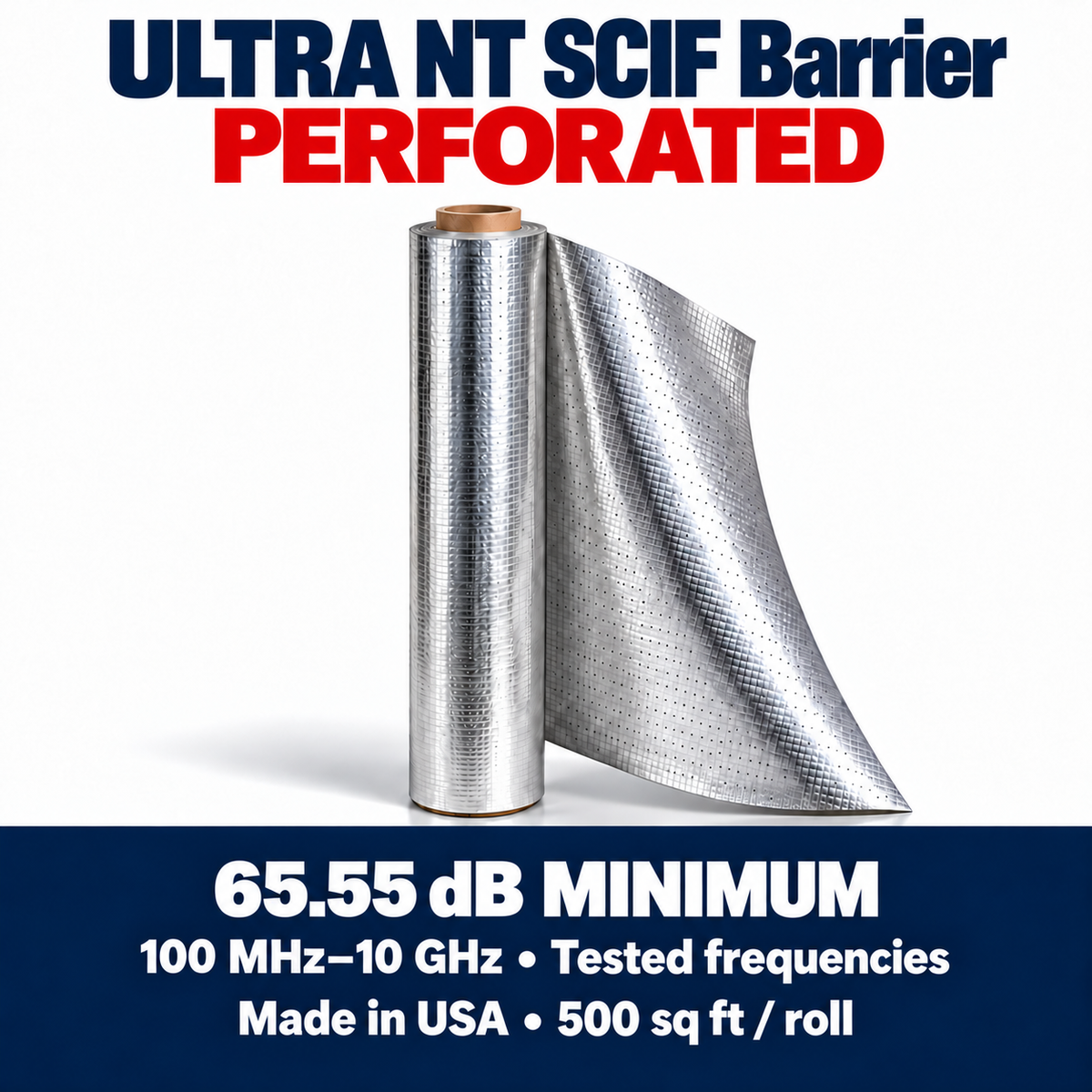

ULTRA NT SCIF Barrier – PERFORATED is a reinforced, perforated aluminum foil membrane for RF shielding in project-designed SCIF and other secure enclosures.
- 65.55 dB minimum measured shielding effectiveness at tested frequencies from 100 MHz to 10 GHz
- Made in the USA
- 48 in × 125 ft roll • 500 sq ft nominal area
- ASTM E84 Class A surface burning characteristics
Need project or volume pricing? Send your quantities and delivery requirements for a written quote.
Technical Documentation
Review the PERFORATED product submittal and its dedicated test report for material selection, specifications, and measured shielding results.
Product Specifications
| Roll dimensions | 48 in wide × 125 ft long |
|---|---|
| Nominal area | 500 sq ft per roll |
| Shielding effectiveness | 65.55 dB minimum • 100 MHz–10 GHz at tested frequencies |
| Manufacturing | United States |
| Construction | Two-sided aluminum foil with woven polyethylene reinforcement |
| Thickness | 6.52 mil |
| Surface burning | ASTM E84 Class A |
| Water-vapor permeance | 2.69 perms |
| Emissivity / reflectivity | 0.03 / 97% |
Applications & Installation
Install within the approved shielding assembly and maintain continuity at seams, corners, and interfaces. Select the membrane type and accessories required by the project design.
Measured results apply to tested samples. Project approval and completed-enclosure acceptance depend on the design, installation, and specified testing.
Availability & Ordering
Stock orders ship the next business day with tracking provided after carrier pickup. Free UPS Ground shipping is included within the contiguous U.S. Contact us for project quantities and delivery requirements.
Frequently Asked Questions
How does PERFORATED differ from SOLID?
PERFORATED has its own material properties and measured shielding performance. Review the PERFORATED submittal and test report against the project requirements.
How much area does one roll cover?
500 sq ft nominally. Allow for overlaps, returns, cuts, and waste when determining installed coverage.
Plan Your RF Shielding Installation
Review the ULTRA NT SCIF Barrier installation instructions and technical data sheets and submittals. Compare ULTRA NT SOLID shielding membrane with your project requirements.
See 3M 3302 conductive seam tape, 3M 1170 foil shielding tape and EMCaulk FLEX conductive caulk for project-approved interfaces.
Questions About Your Project?
Contact Michael Thrift, National Building Supplies, LLC.
Call or text: (573) 825-5074
Toll-free: (800) 753-9090
