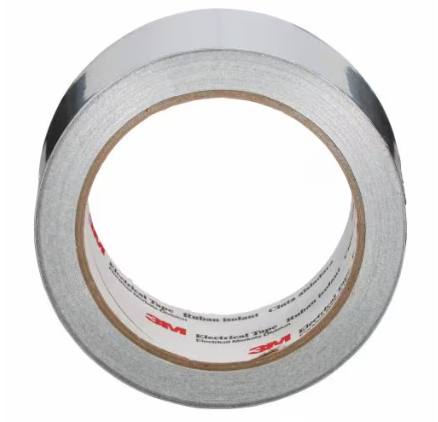

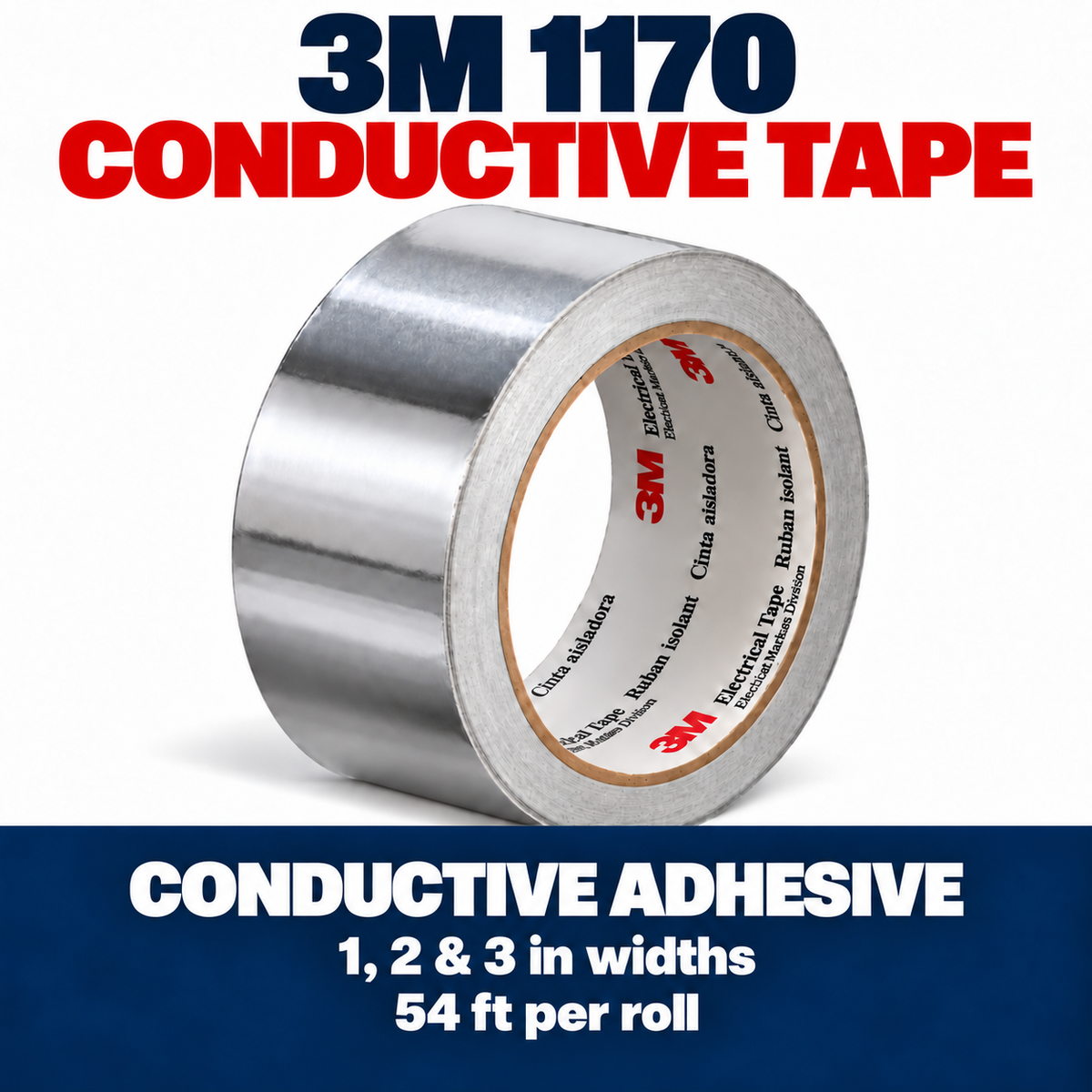

3M 1170 - EMI Shielding Tape with Conductive Adhesive
3M™ EMI Shielding Tape 1170 is an acrylic adhesive, EMI shielding foil tape. This flame retardant tape is designed for applications that require reliable, point-to-point electrical contact. It comes on a removable liner for easy die cutting and handling. It withstands a wide temperature range of 40 to 266 °F ( 40 to 130 °C). The tape is rated for 600V dry applications.
3M™ EMI Shielding Tape 1170 has an aluminum foil backing with a pressure-sensitive, electrically conductive acrylic adhesive that ensures firm adherence. The conductive particles in the adhesive offer low resistance between the substrate and the backing. This tape is designed for static charge draining, seaming shielded rooms, cable wrapping, and surface contact with non-solderable materials. It is ideal for EMI shielding, grounding, and static charge draining. UL Listed and RoHS 2011/65/EU Compliant
3M 1170 Features:
- Unique adhesive creates secure contact with the application surface
- Suitable for EMI shielding, grounding, and static charge draining
- Flame-retardant
- Withstands a wide temperature range of -40 to 266 °F (-40 to 130 °C)
- UL Listed and RoHS 2011/65/EU Compliant
Technical Information
- Brand: 3M
- Adhesion Strength: 35oz/in
- Adhesive Material: Acrylic
- Material Category: Plastic
- Maximum Operating Temperature: +130°C
- Minimum Operating Temperature: -40°C
- Series: 1170
- Storage Conditions: N/A
- Tensile Strength: 20lb/in
- Roll sizes: 1" x 54', 2" x 54' and 3" x 54'
- Weight: 0.81
- Country Of Origin: US
